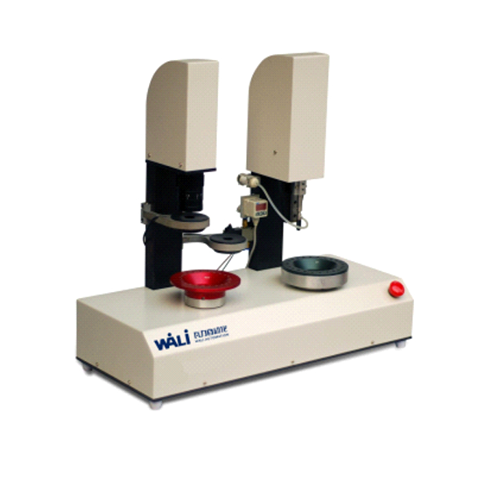

VSIXZ-007 nozzle detector

Product Features:

It can automatically detect the appearance and vacuum value of the nozzle, and is mainly used to detect small components such as 0603, 0402, 0201, 1005 and other high-precision nozzles. It is also possible to perform nozzle database management by detecting the two-dimensional code of the nozzle, importing the nozzle detection data in batches, and performing data query and analysis functions.

Features:

1. First, automatic nozzle end optical inspection function:

    1.1 Automatic imaging;

    1.2 automatic optical judgment;

    1.3 Test data can be imported into the database;

    1.4 with single-step test, manual correction, partial amplification and other functions;

2. the automatic nozzle vacuum detection function: the nozzle that does not pass through the hole through the vacuum value to determine whether the nozzle is smooth, the judgment parameters can be set.

3. the test speed: optical detection 1S / support, vacuum test 1.5S / support

4. Two-dimensional code recognition function: Identify the two-dimensional barcode of the nozzle, track the nozzle, count the number of detections of each nozzle, and maintain the nozzle in advance;

5. Added support for FUJI NXTIII H24 patch head nozzle detection function;

6. Database management function, support batch import of nozzle detection data, nozzle detection data query, analysis and other functions;
